Cold Cut Cobra Firefighting Cutting Extinguisher
The Cold Cut Cobra cutting extinguisher combines firefighter safety and efficiency with minimal environmental impact, enabling a world of Safer, Cleaner, and More Efficient Firefighting.
Cold Cut Cobra Extinguisher Systems Use Cases
Fire in Lithium-Ion Battery Modules
Cobra used on a propagating lithium-ion battery module.
Lithium-ion batteries vary in size and are found in a wide range of applications, from electric bikes and mobile phones to electric vehicles and energy storage systems. These batteries are often in a battery pack, a composition of multiple battery modules, each containing several battery cells.
Electric Vehicles
Cobra used on fire in an electric vehicle.
This Use Case focuses on extinguishing Li-ion battery fires in electric vehicles. Li-ion batteries are currently the most common battery type used in the traction batteries of EVs, and they have gained a notorious, perhaps undeserved, reputation for their propensity to burn.
Hidden Fire
Cobra used in wall or floor construction, ducting or crawl spaces.
A successful attack on structural fires can be done from the outside using Cobra. The confined space where the fire is burning is kept intact while water is applied to the fire. Cobra pierces through the material using water and abrasive, a cutting agent.
Attic and Roof Spaces
Cold Cut Cobra used in attic and roof space fires.
By using the Cobra from outside the attic or roof space, such as from an aerial appliance or ladder, fire crews can efficiently control the fire and reduce smoke and heat in confined fires. This allows BA crews to enter and extinguish any remaining fire under significantly cooler and safer conditions
Aviation Fire
Cobra used on aviation fires.
There are several possible scenarios for aviation fires where Cobra can be deployed with great effectiveness. This increases the efficiency of firefighting, including aircraft fire extinguishing. Importantly, Cobra provides increased safety for firefighters through its ability to facilitate a rapid internal attack from an external position.
Industrial Environments
Cold Cut Cobra used on Industrial environments and buildings.
Cobra is an effective tool whose extinguishing capacity is similar to that of fog nails and sprinklers – but with a much better effect. With a pump pressure of 300 bar and a nozzle as small as 2.3 mm, it creates a fine water mist with minimal droplets.

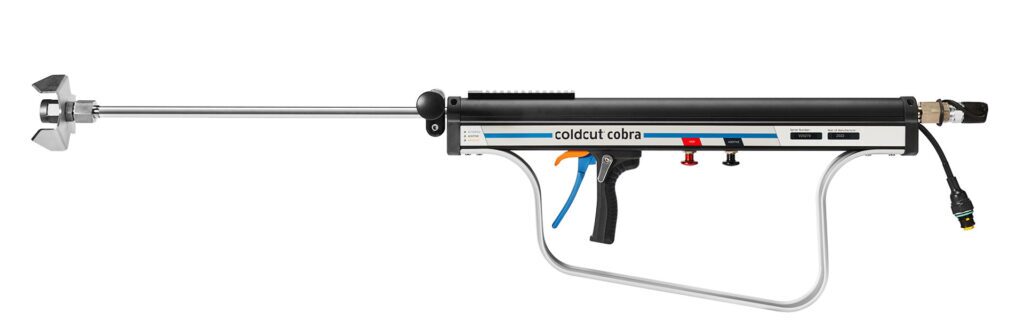

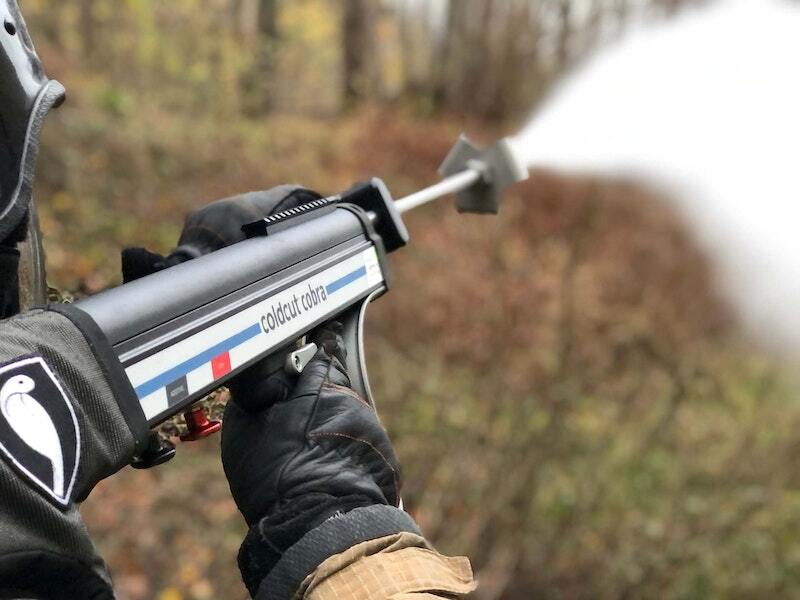

Cold Cut Cobra Cutting Extinguisher / Ultra-high-pressure lance (UHPL)
The Cold Cut Cobra system is an advanced firefighting tool designed to improve both safety and efficiency. Using an ultra-high-pressure water jet, capable of reaching up to 300 bar (4351 psi), the system can pierce through virtually any building material. By mixing abrasive into the water stream, the Cobra effectively cuts through surfaces without introducing additional oxygen to the fire, helping to contain it.
After piercing, only water is used, creating a fine mist that cools fire gases and reduces the temperature. The system can be equipped with optional features such as an additive pump or a Multi-Purpose Nozzle (MPN) for adjustable spray patterns, making it versatile for different firefighting needs.
Don’t waste time and money on lengthy bid processes. Many agencies and facilities are overspending on consumables and equipment procurement, but Safeware’s cooperative contracts offer contract pricing on all equipment and service solutions while eliminating the need for traditional bids. Request a quote today to reduce costs and accelerate your procurement process.
C 360 H Kit
Cutting Extinguisher System
The C 360 H Kit is a cutting extinguisher system specifically engineered for vehicle-based installation in larger fire engines. It is designed to integrate with the vehicle’s existing oil hydraulic system, featuring an interface at the oil hydraulic motor (mounted on the high-pressure water pump). The kit includes all essential components up to the hand lance.
C 360 Kit
Cutting Extinguisher System
The C 360 Kit is a cutting extinguisher system specifically designed for vehicle-based installation in fire engines. Delivered to the coachbuilder as an assembly kit, it includes an interface at the output shaft of the highpressure water pump, along with all key components up to the hand lance. The coachbuilder is responsible for integrating the power source for the high-pressure water pump, with detailed guidance provided by Cold Cut Systems specialists and supporting documentation.
C 360 HLS Kit
Cutting Extinguisher System
The C 360 HLS Kit is a cutting extinguisher system specifically designed for vehicle-based installation in larger fire trucks. It features a complete oil hydraulic load-sensing system, with an interface at the oil hydraulic pump. The transmission/cardan shaft between the oil hydraulic pump and the PTO is to be engineered by the coachbuilder.
C 330 P Kit
Cutting Extinguisher System
The C 330 P Kit is an assembly kit designed for integration by a coachbuilder into fire trucks and quick attack vehicles. The kit is assembled as an autonomous unit, without the need for integration with the vehicle power transmission system.
Supplied with a petrol engine, it operates at a water pressure of 300 bar (4351 psi) with a flow rate of 28 lpm (8 US gpm).

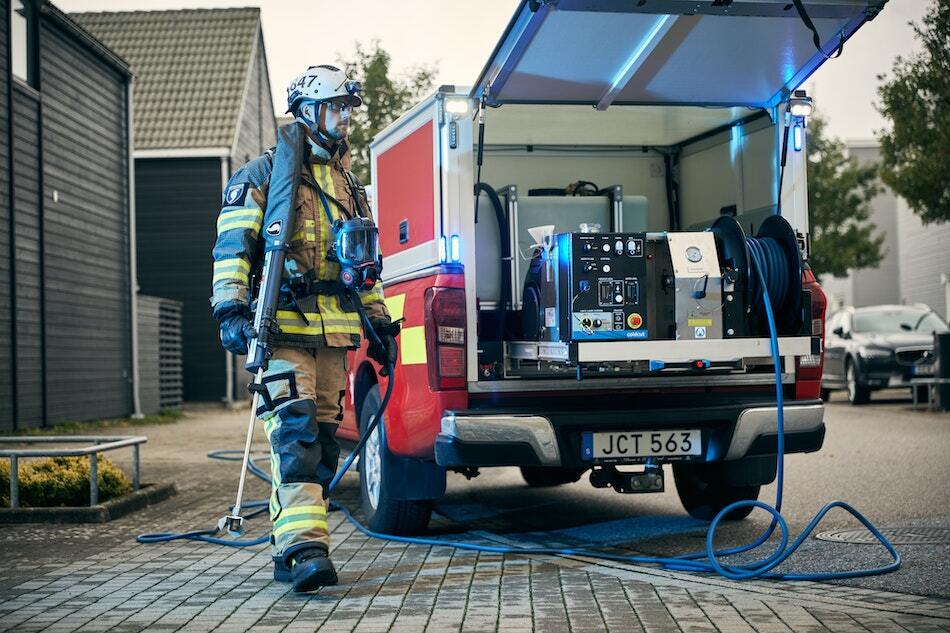

COBRA SKID UNIT
delivered mounted on a tray
The Cobra Skid Unit is delivered mounted on a tray, making it easy to install onto light firefighting vehicles. Powered by an integral petrol engine, it operates at a water pressure of 280 bar (4061 psi) with a flow rate of 26 lpm (6,8 US gpm).
The Cobra Skid Unit comes equipped with the Multi-Purpose Nozzle (MPN) as standard, a low-pressure nozzle that enhances the versatility of the unit.

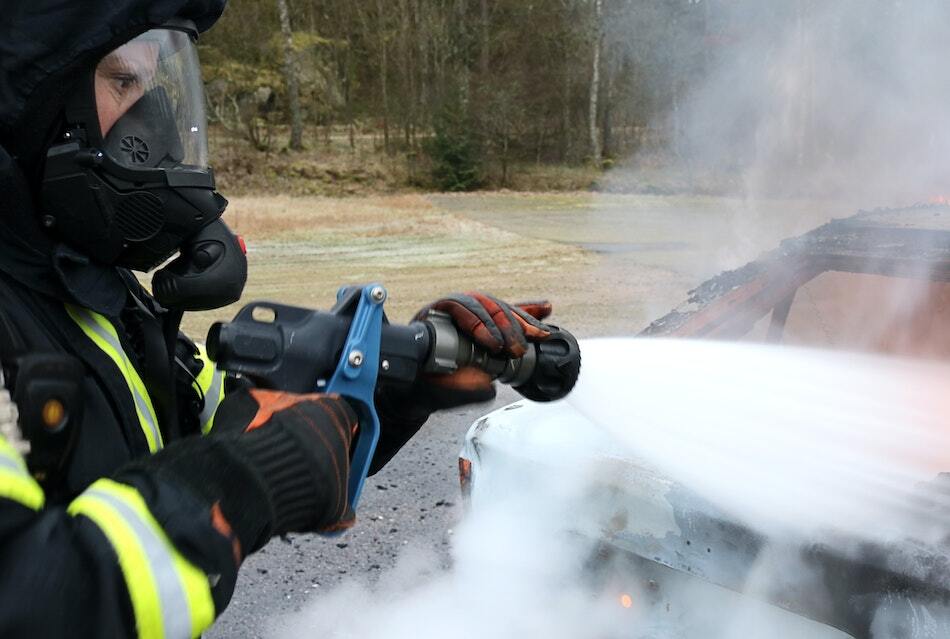

MULTI-PURPOSE NOZZLE
Optional Cold Cut Cobra Nozzle
The Multi-Purpose Nozzle (MPN) complements Cold Cut Cobra when used at a range of incident types. The addition of the MPN broadens the scope of Cobra equipment when used in combination and provides an enhanced ability to resolve many different firefighting scenarios more effectively and efficiently, examples include: car fires, outdoor fires, damping down operations, decontamination and foam attack.
Safer, Cleaner, More Efficient
Safer Firefighting
Internal firefighting exposes Firefighters to significant risks, both physical and psychological. The Cobra Method of Scan, Attack, Ventilate, and Enter – SAVE – offers a far safer firefighting option for firefighters.
Cleaner for the Environment
Cobra is cleaner in multiple ways. It reduces the direct environmental impact on our surroundings and planet, while also contributing to a cleaner, safer, and healthier working environment for the individual firefighter.
More Efficient for Communities & Teams
Using Cobra quickly suppresses fire development, giving the Incident Commander valuable time to coordinate an efficient response. By applying Cobra early, rapid fire spread can be contained, protecting both communities and teams.
